Specifications
| Supported lens size | 1/4 |
|---|---|
| Focal distance | 1.68 |
| F/No | 2.5 |
| Angle of view | Vertical 94° Horizontal 128° Diagonal 170° |
| Pixel size | 3.0 μm |
| TV distortion |
-37 % |
| Flange back (mm) | 3.34 |
| Distance between the tip of the lens barrel and the sensor (mm) |
18.4 |
| Infrated permeability |
〇 |
| Lens composition | 6G |
| Attaching standard | M12 |

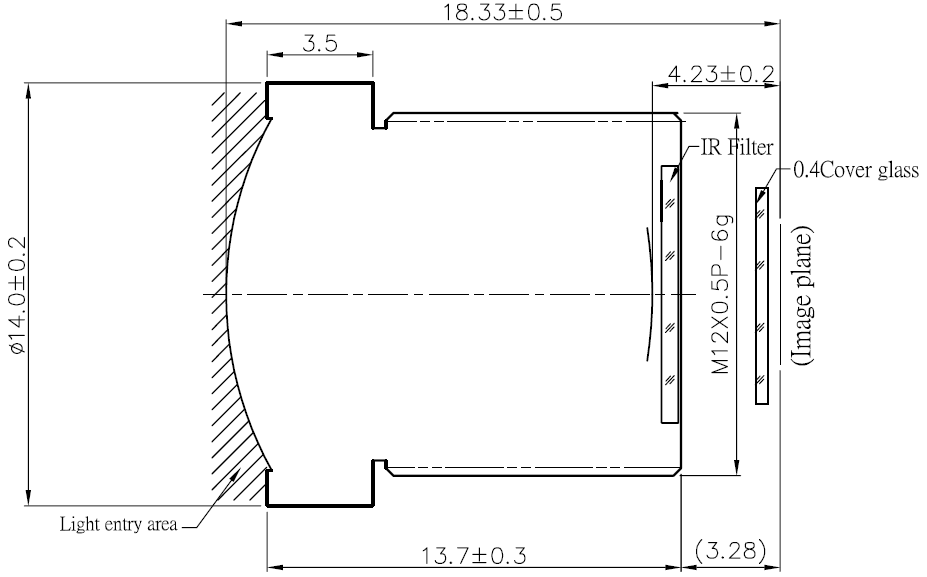

Dimensions
