HPB2010

Horizontal angle of view 44°
M12 mount lens for a 1/4-inch sensor

*This photo includes HPB2010 with a holder.

HPB2010

Specifications

Supported lens size 1/4
Focal distance 4.80
F/No 2.6
Angle of view Vertical 34°
Horizontal 44°
Diagonal 52°
Pixel size 2.8 μm
TV distortion

-1 %

Flange back (mm) 2.00
Distance between the tip
of the lens barrel
and the sensor (mm)
11.0
Infrated permeability

Lens composition 2P
Attaching standard M12

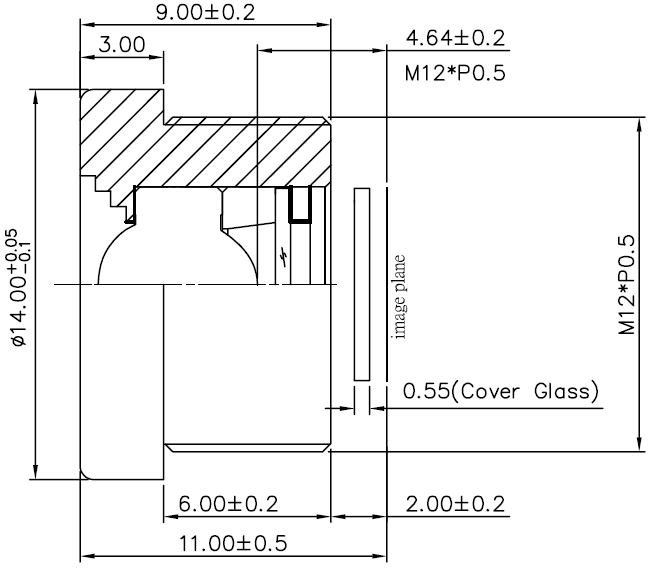

Dimensions
