HPB3041

Horizontal angle of view 119°
M12 mount lens for a 1/4-inch sensor

*This photo includes HPB3041 with a holder.

HPB3041

Specifications

Supported lens size 1/4
Focal distance 1.19
F/No 2.4
Angle of view Vertical  99°
Horizontal 119°
Diagonal 134°
Pixel size 2.2 μm
TV distortion

-9 %

Flange back (mm) 1.92
Distance between the tip
of the lens barrel
and the sensor (mm)
13.9
Infrated permeability

Lens composition 2P2G
Attaching standard M12

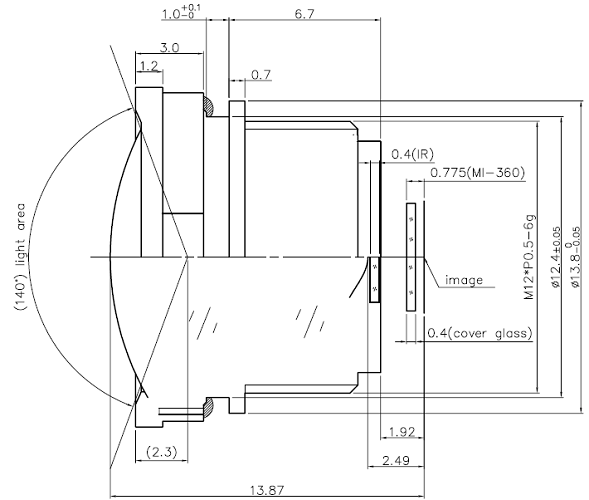

Dimensions
