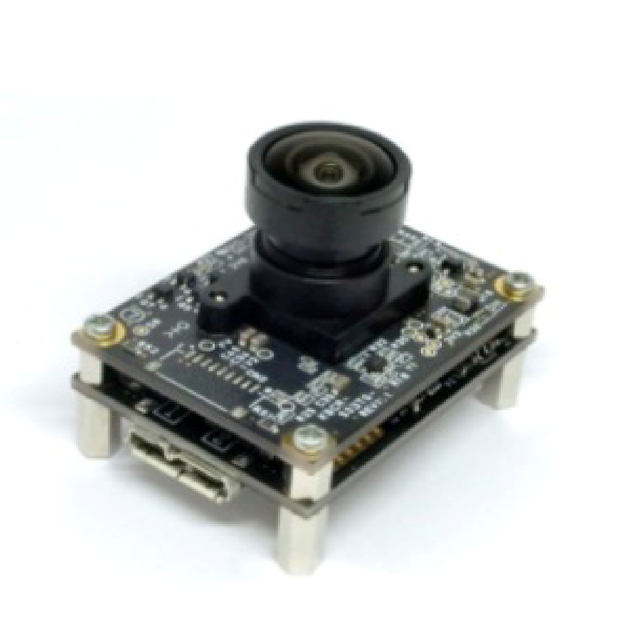

KBCR-S01TU

Features

High speed transfer
Uncompressed transfer mode(YUV) : FDH(30fps)

No driver installation necessary by UVC correspondence

Support small lots production and stable supply
for industrial application

Full technical support and semi-customization available
(customized firmware can be loaded into ROM, and lens selection is available)

Trust and result of in-house production in Japan

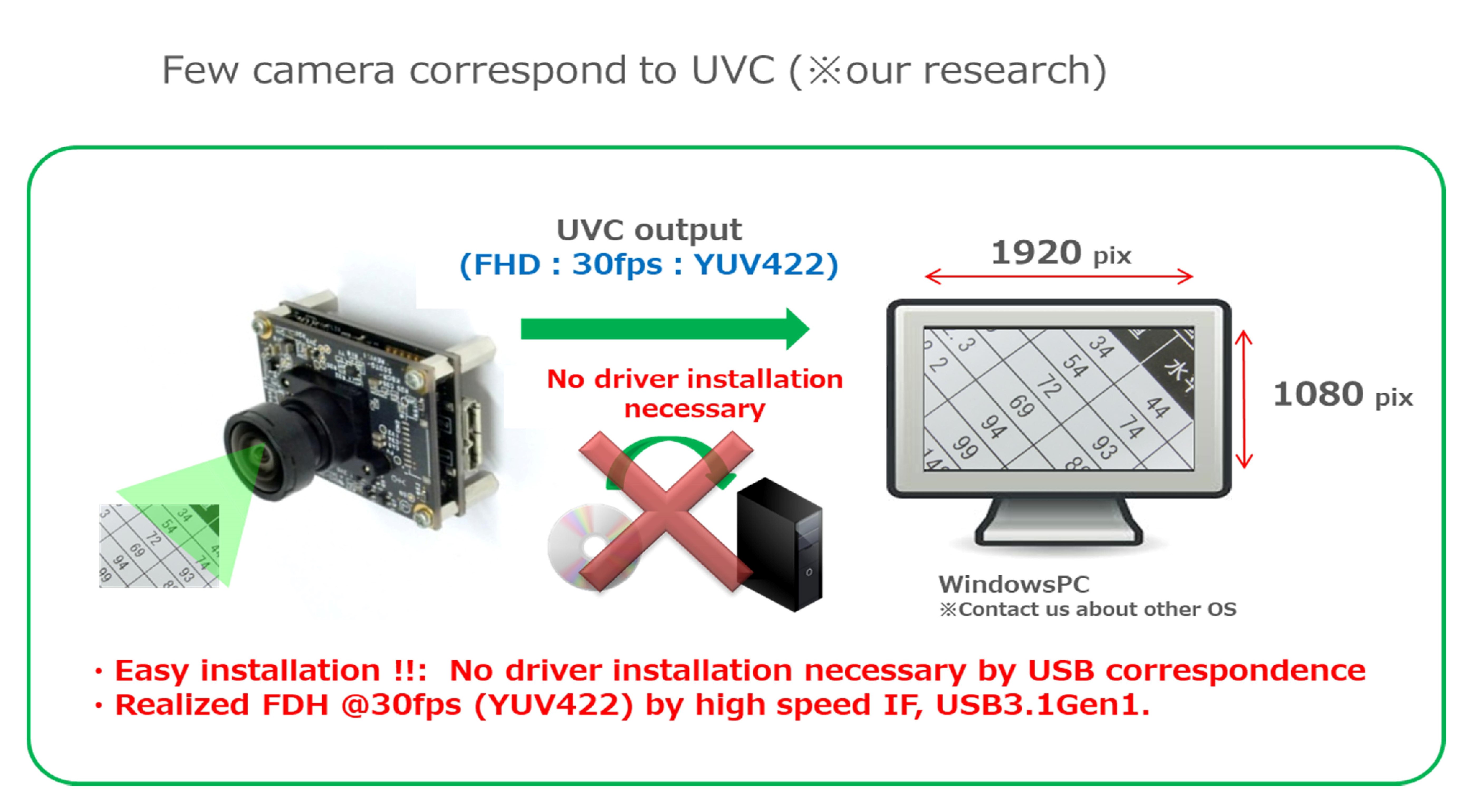

UVC (USB Video Class) correspond: Image output just by connecting

Image sensor	1/2.7-inch CMOS color sensor/rolling shutter
Total number of pixels	1920 x 1080 pixels
Image area	5.8 × 3.2 mm
Output signal format	USB3.1(Gen1) SuperSpeed(5Gbps)
Interface	USB3.0-MicroB
Function	Automatic Exposure Control, Automatic Gain Control, Automatic White Balance, Various image adjustemt functions(software control）
Power supply voltage	5.0V
Power consumption	T.B.D.
Operating temperature	0〜+50℃
Storage temperature	-10〜+60℃ (lens excluded）
