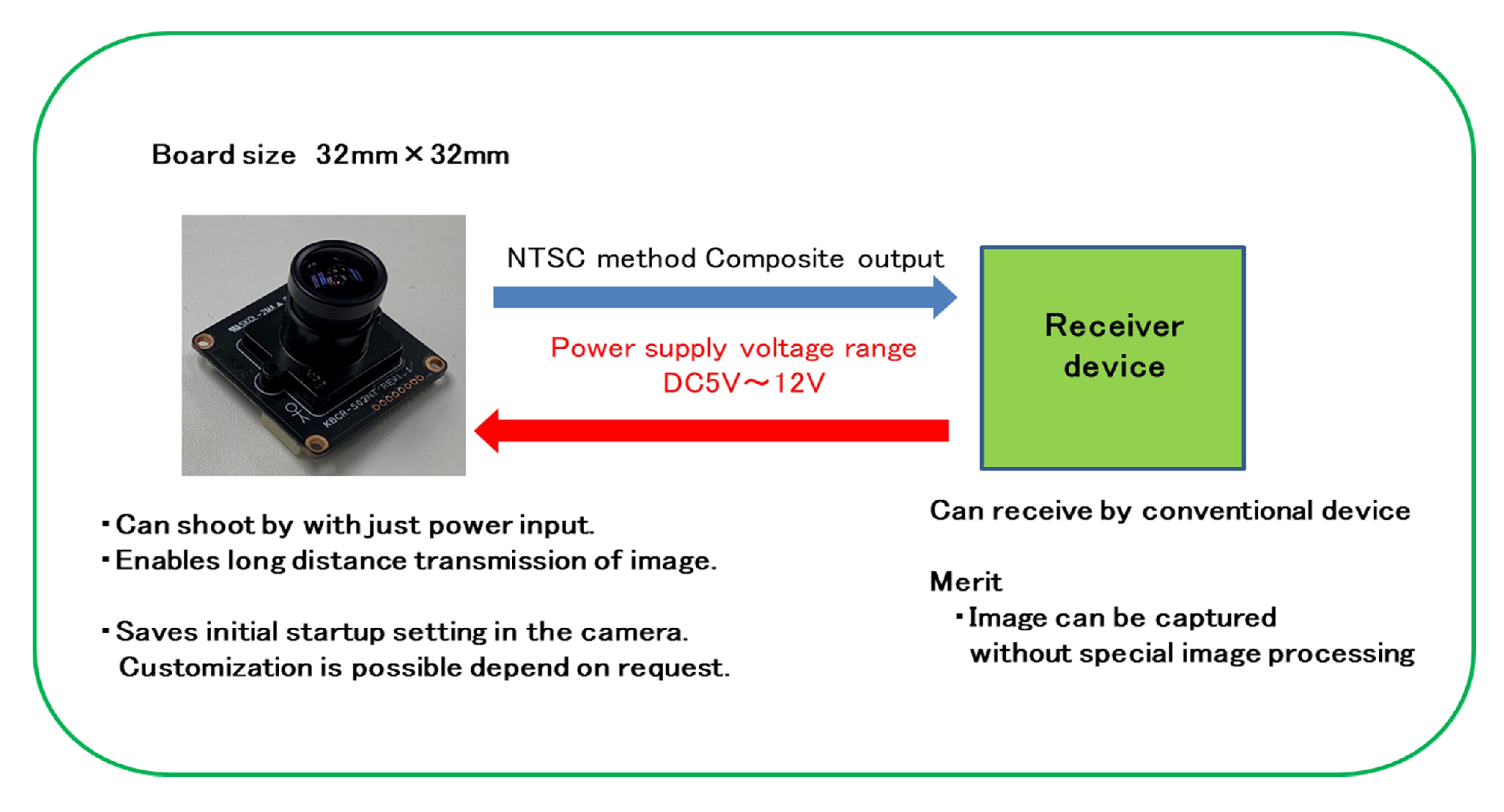

Feature (Specification may be changed, because of under development)
Specifications (Specification may be changed, because of under development)
| Image sensor | 1/4-inch CMOS color sensor/rolling shutter |
|---|---|
| Total number of pixels | 1920 x 1080 pixels |
| Image area | 3.6 x 2.7 mm |
| Output signal format | NTSC methos Composite 75Ω drive (1.9V p-p 75Ω at terminal) |
| Interface | 7pin connector (Composite signal output, Power input) |
| Function |
Automatic Exposure Control, Automatic Gain Control, Automatic White Balance, |
| Power supply voltage | DC5～12V |
| Power consumption | 0.5W (max.) |
| Operating temperature | -10～+60℃ |
| Storage temperature | -20～+70℃ (lens excluded) |
