2M pixels
High image quality

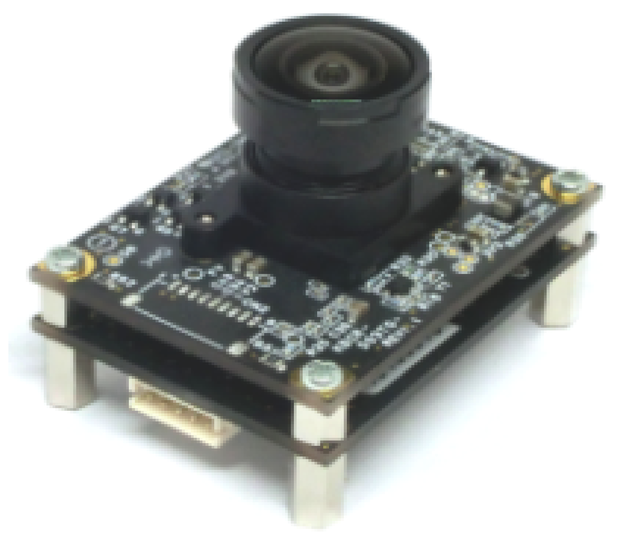

USB Camera module
KBCR-S02TU

Features

  • High speed transfer MJPEG 15fps
  • No driver installation necessary by UVC correspondence
  • Support small lots production and stable supply
    for industrial application
  • Full technical support and semi-customization available
    (customized firmware can be loaded into ROM, and lens selection is available)
  • Trust and result of in-house production in Japan

KBCR-S02TU

Specifications

Image sensor 1/2.7-inch CMOS color sensor / rolling shutter
Total number of pixels 1920 x 1080 / 1280 x 720
Image area 5.8 x 3.2 mm
Output signal format USB2.0 (MJPEG)
Interface 5pin connector
Function HDR / Automatic Exposure Control, Automatic Gain Control, Automatic White Balance,
Various image adjustment functions(software control)
Power supply voltage 5.0 V
Power consumption 0.9 W (max) *when image transfer
Operating temperature 0〜+60℃
Storage temperature -10〜+70℃

Dimensions (lens mount for M12 board lens attached)


List of Compatible lens

Click here for Lens line up/Coresspond lens list
