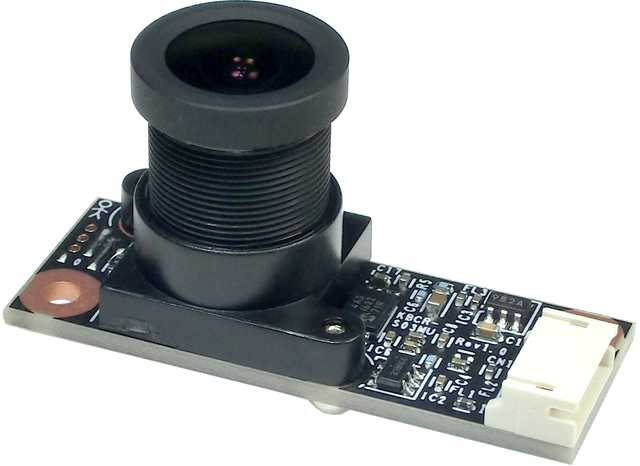

KBCR-S03MU

Features

High-speed transfer
Compressed transfer mode (JPEG) : 30fps
Uncompressed transfer mode (YUV) : SXGA, 720p (7.5fps), VGA (30fps)

No driver installation is required due to UVC support.

Suitable for industrial applications due to small production quantities and long-term stable supply.

Full technical support and semi-customization are available.
(Customized firmware can be loaded into ROM, and lens selection is available.)

Trust and result of in-house production in Japan.

Specifications

Image sensor	1/4-inch CMOS color sensor/ rolling shutter
Total number of pixels	1280 x 960 pixels / 640 x 480 pixels
Image area	3.84 x 2.88 mm
Output signal format	USB2.0 (YUV / MJPEG)
Interface	5pin connector
Function	Automatic Exposure Control, Automatic Gain Control, Automatic White Balance, and Various image adjustment functions (software control)
Power supply voltage	5.0 V
Power consumption	1.00 W (max.)
Operating temperature	-10°C ~ +60°C
Storage temperature	-20°C ~ +70°C (lens excluded)

・Evaluation kits can be purchased from Arrow for R&D and mass production evaluation.

Manufacturer Part No.	Lens	Dedicated USB Cable	Purchase Link
KBCR-S03MUW-12-H95	One lens included (HFOV: 95°)	Optional	■
KBCR-S03MUW-12-H207	One Fisheye lens included (HFOV: 207°)	Optional	■
USB Cable　KBCR-USBC100	（Cable Length：１m　Type A to 5pin）	ー	■

　*Clicking the "Purchase Link" will take you to the product page on the Arrow website.
