Digital YUV Output
High image quality

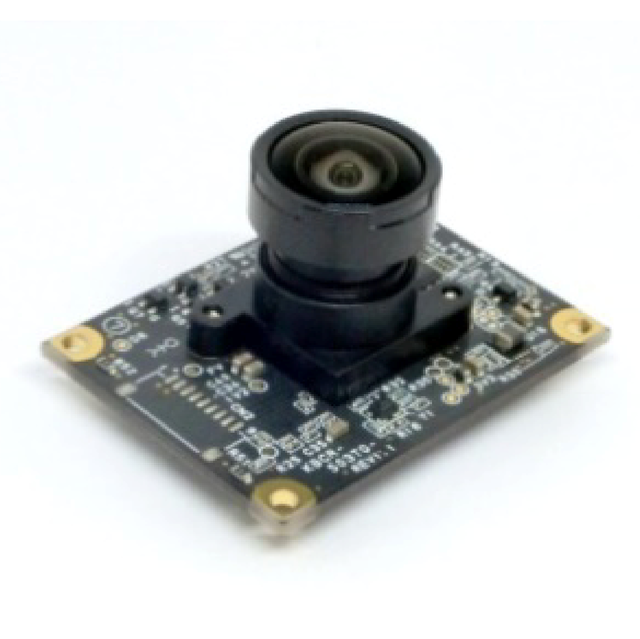

2M pixel Camera module

KBCR-S03TG

Features

  • High resolution
    Various transfer mode and frame rate
    1080p mode(FHD) : 30fps
    960p mode(SXGA) : 30fps
    720p mode(HD): 30fps
  • Support small lots production and stable supply
    for industrial application
  • Full technical support and semi-customization available
  • Trust and result of in-house production in Japan

KBCR-S03TG

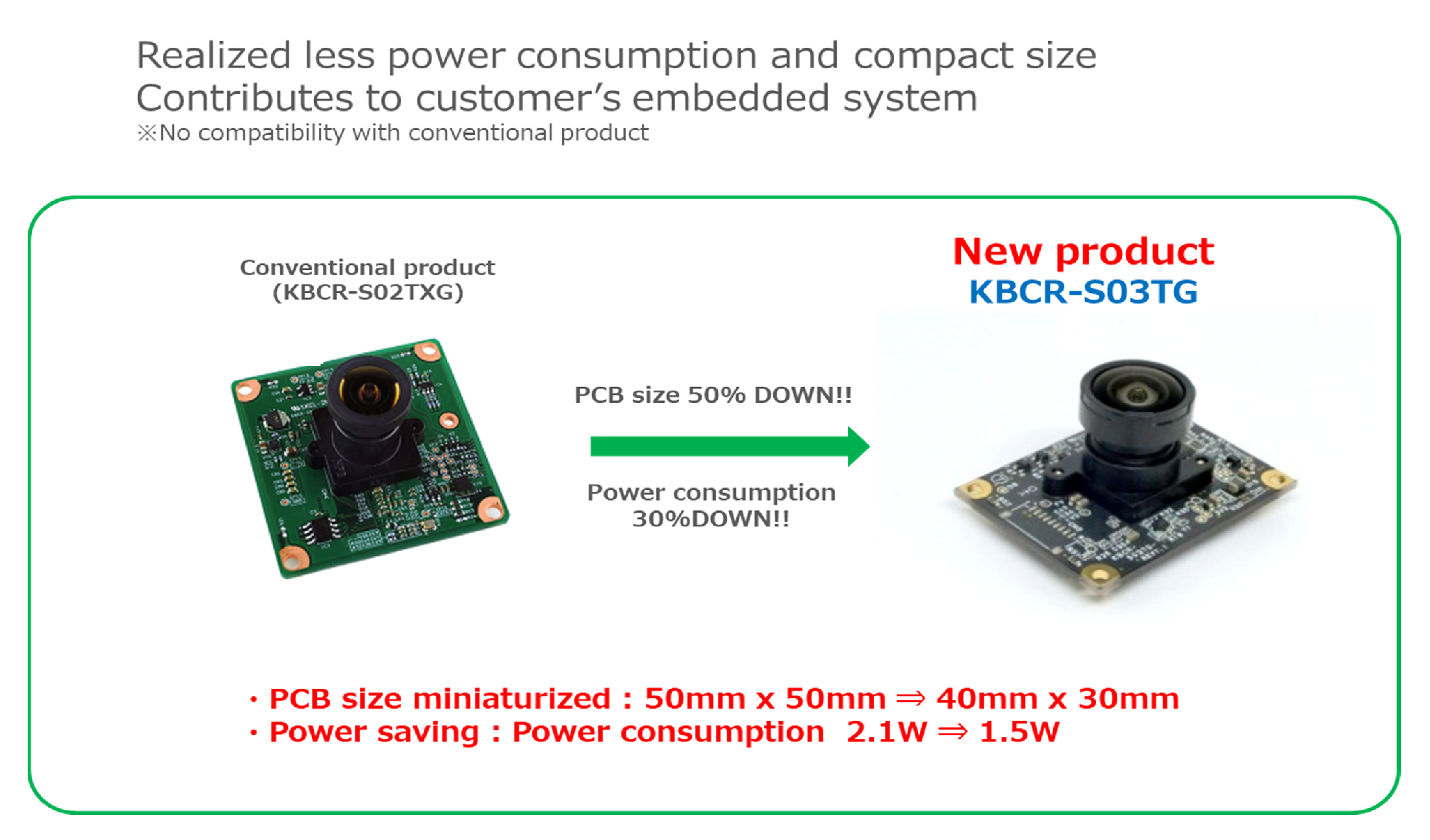

Features (Specification may be changed, because of under development)


Specifications (Specification may be changed, because of under development)

Image sensor 1/2.7-inch CMOS color sensor/rolling shutter
Total number of pixels 1920 x 1080 pixels
Image area 5.8 x 3.2 mm
Output signal format YUV 4:2:2 (16bit)
Interface 60pin connector
Function Automatic Exposure Control, Automatic Gain Control, Automatic White Balance,
Various image adjusment functions by register control through I2C
Power supply voltage 5.0V
Power consumption 1.5W(max.) (TBD)
Operating temperature -10~+60℃ (T.B.D.)
Storage temperature -20~+70℃ (T.B.D.) (lens excluded)

List of Compatible lens

Click here for Lens line up/Coresspond lens list
