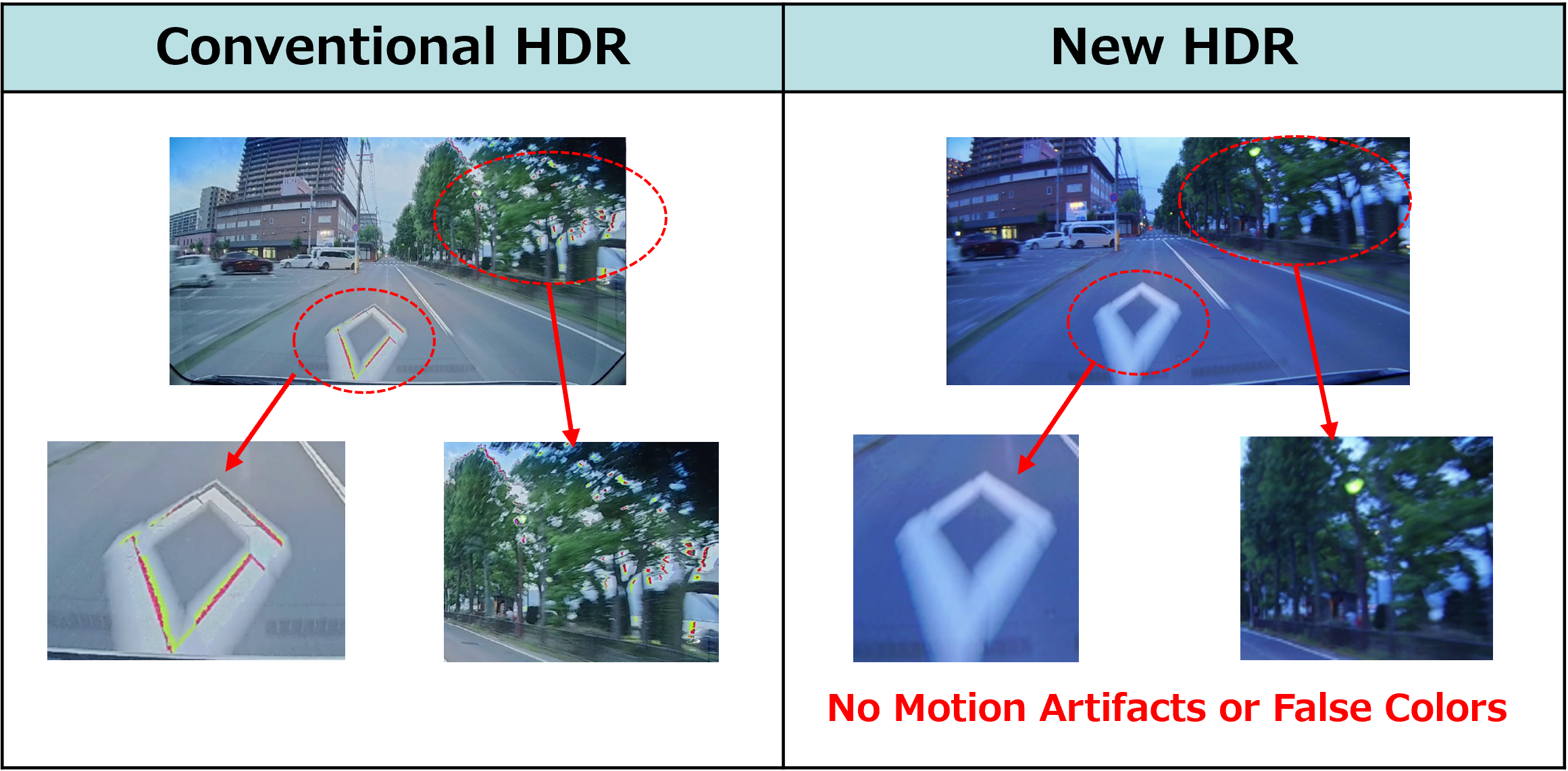

HDR with DCG (Dual Conversion Gain) + Multi-Exposure Technology
Achieves a wider dynamic range than our current camera modules while minimizing motion artifacts and false colors in moving scenes.
This HDR camera is ideal for applications requiring reliable imaging of moving subjects.
Compact Board Design & Extended Operating Temperature Range
Significantly smaller than the previous KBCR-S02TU model, with an extended operating temperature range.
Its compact size and enhanced environmental durability enable easy integration into space-constrained and outdoor equipment.
| Model | Previous Model (KBCR-S02TU) | KBCR-S05TU |
|---|---|---|
| Board Size | 40mm x 30mm, Dual-Board Stack | 29mm x 29mm, Single-Board Design |
| Operating Temperature | 0 ～ +60℃ | -25℃ ～ +70℃ |
Compact Board Design & Extended Operating Temperature Range
| Image sensor | 1/2.92-inch CMOS color sensor / rolling shutter |
|---|---|
| Total number of pixels | 1920 x 1080 / 1280 x 720 pixels |
| Image area | 5.376 × 3.024 mm |
| Output signal format | USB2.0 （YUV / MJPEG） |
| Interface | 5pin connector |
| Function | HDR, Automatic Exposure Control, Automatic Gain Control, Automatic White Balance, and Various image adjustment functions (software control) |
| Power supply voltage | 5.0 V |
| Power consumption | T.B.D. |
| Operating temperature | -25℃ ～ +70℃ (Limited by lens specifications) |
| Storage temperature | -25℃ ～ +70℃ (Lens excluded) |
