Functional configuration
Dimensions
Specifications
| Customer base analysis camera | |||
| Function |
Face detection |
Maximum number of detected faces |
10 |
|
Minimum image size |
15 pixels and more between eyes |
||
| Detectable facial angles |
(1) Top and bottom：±30° Left and right：±15° Inclination：+15° | ||
|
(2) Top and bottom：±30° Left and right：±45° Inclination：±45° |
|||
| (3) Top and bottom：±30° Left and right：±75° Inclination：±45° | |||
| Illuminance | 50 to 10,000 lux | ||
| Condition of detecting faces | Eyes, eyeblows, months and noses are in images. | ||
| Detection level |
The balance between the detection rate and the false detection are balanceable (i.e., higher detection rate increases the false detection rate) |
||
| Scanning time for face detection | Balance adjustment between the face detection accuracy and the processing time (i.e., higher accuracy prolongs the processing time) | ||
| Gender and age estimation | Age estimation balance | Balance adjustment between the processing speed and its accuracy of estimating ages (i.e., higher accuracy prolongs the processing time) | |
| Gender and age correction | Function to correct genders and ages estimated by processing images (e.g., change the setting so as to output the result of female ages younger than the actual outcomes by 5 years) | ||
| Specifications | Image sensor and pixels | 1/4-inch CMOS color sensor/ 0.3 pixels | |
| Power voltage | DC 5.0 V or power supply by PoE HUB (IEEE 802.3af complied) | ||
| Power consumption | 5 W (max.) | ||
| Valid detection range | 2 to 5m2 *This range is changeable by exchanging lenses. | ||
| Dimensions | 56mm (H) × 58mm (W) × 58mm (D) | ||
| Weight | 250g and less | ||
| Warranted operating temperature | 0 to 50℃ | ||
| Warranted operating humidity | 80% and less | ||
| Network | 100 BASE-TX/ 10 BASE-T (AUTO-MDIX compatible) | ||
| Tested OS | Windows 7 32bit/ 64bit | ||
| *Due to the support of USB Video Class, this product is available regardless of OS. | |||
Product lineup
 |
|

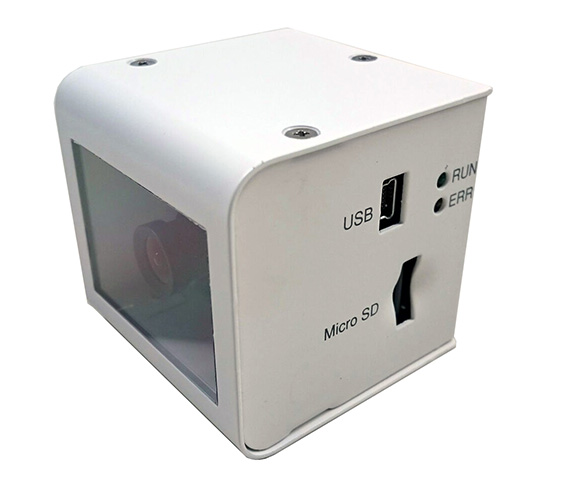

KBCR-I01VCFD1L (wired LAN type) 100Base-TX compatible with POE |
